Vertex — environments overview
Status: Proposed · Last decision session: 2026-09-24 · Owner: TTG Technical Lead
Vertex is the TTG internal platform (Admin, Invoicing, CRM) for up to ~10 users. This section describes the
new stage and prod environments. The current running stack (EC2 vertex-dev-app, vertex-dev-*
resources, Worker vertex-console) is legacy and stays untouched until it is decommissioned.
At a glance
| Topic | Decision |
|---|---|
| Environments | stage (UAT, prod-like) and prod. No separate dev environment. |
| Repositories | thetaxgraph-ai/vertex — application code only (vendor has write). thetaxgraph-ai/ttg-infra — IaC, config, deploy workflows (TTG only). |
| Deployments | Manual for both envs, triggered from ttg-infra. The vendor asks TTG for a deployment. |
| Edge | Cloudflare Workers vertex-stage / vertex-prod on thetaxgraph.com + one Cloudflare Tunnel per env. |
| AWS region | eu-west-1 (Ireland) — EU, cheapest EU region for this stack. |
| Compute | Amazon ECS on Fargate (x86_64): one task per env with three containers — core, identity, cloudflared. |
| Network | Separate VPC per env; task in a private subnet; egress via a NAT instance; nothing accepts inbound internet traffic. |
| Database | Dedicated Amazon RDS for PostgreSQL 16 per env (clean start). |
| Login | Google OAuth with a separate Google Cloud project per env. |
| Images | GitHub Container Registry (GHCR), built by ttg-infra from an exact commit of vertex. |

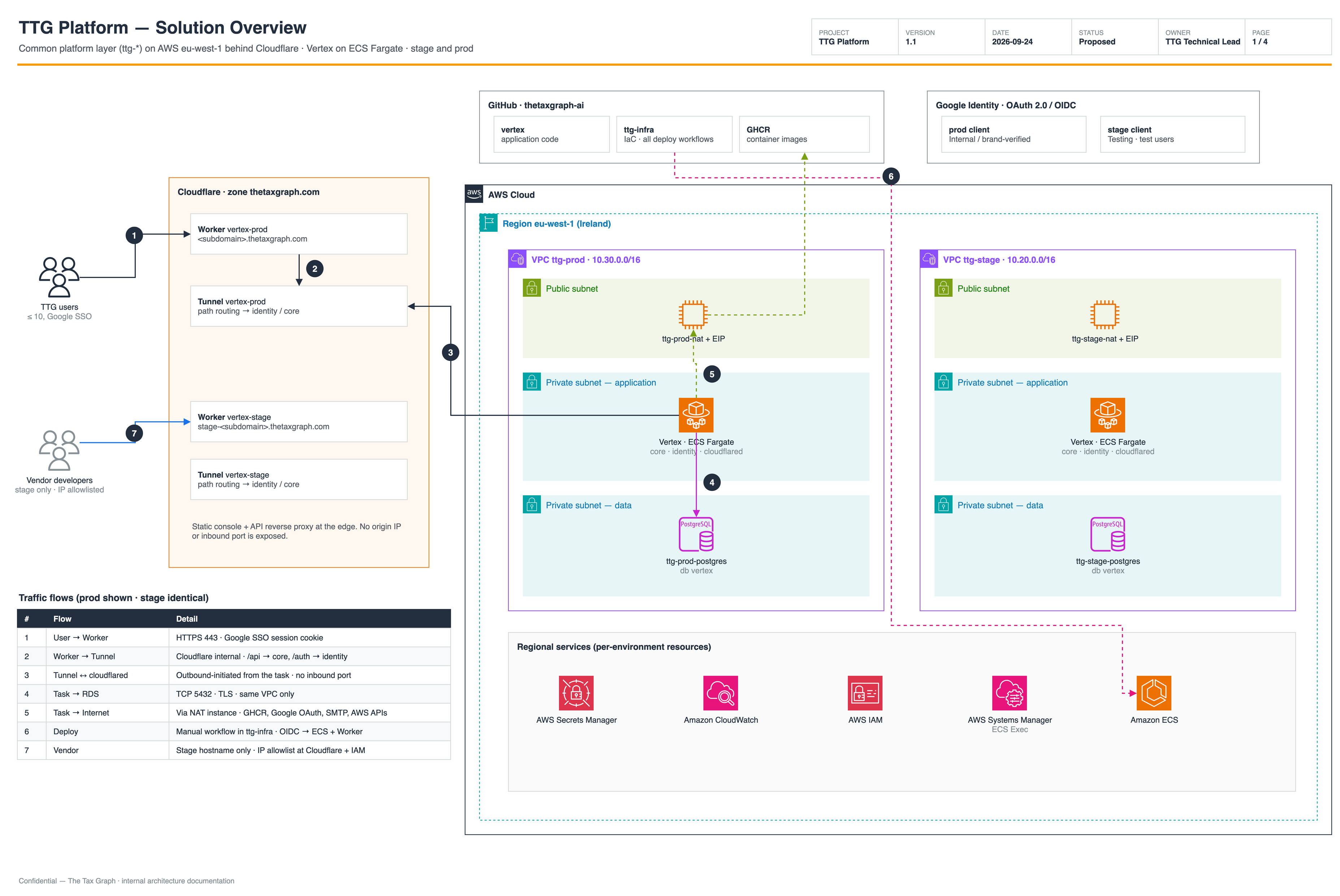

Architecture
Editable source: ttg-infra/docs/aws-architecture.drawio (four pages: overview, network, security, delivery).
